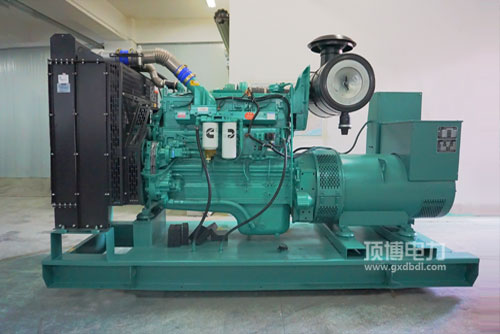

224-310KW广西顶博发电机组制造:康明斯发电用发动机可靠性高：高强度合金铸造缸体、可锻铸铁(FCD) 活塞，刚性更好，降低振动和噪声，提高了发动机适应更高的爆发压力。

High reliability: intensified alloy casting cylinder and Ferrous Cast Ductile (FCD) piston provide engine a better rigidity performance and lower vibration & noise, and also make the engine adapt to higher explosion pressure.

康明斯发电厂用发起机汽柴油城市发展性好: 优秀的汽柴油管理自动的控制设备，别具一格 的STC、ESTC 划分管理自动的控制设备，比较特殊制定的汽缸顶面自燃室，高压变压器噴射汽柴油，宽裕雾化吸入，自燃宽裕。

Good fuel economy: Advanced fuel control system, unique STC, ESTC step control system, specilly-designed piston topchamber and high pressure fuel injection lead to an excellent fuel consumption rate and emission performance of engine.

康明斯并网发电用打着机瞬态效果良好: 极致的打着机综合定制，协调康明斯差异化的的EFC整体，抑制gps精较高，运行事件快。

Excellent transient performance: perfect overall engine design with unique Cummins EFC system, high precision on control and quick response time.

康明斯并网发电用汽车发行为升马力高: 局部设计紧凑型.看上去安排适当，作业平缓。High lift power: Integrated and compact design, reasonable layout and smooth operation.

电喷智能机型 QSNT. QSK19. QSK38. QSK50达到中国有非之路其次关键时期及中美洲Tier2. Tier 3尾气排放标准法律法规标准要求。

Electric fuel injection engines (QSNT,QSK19,QSK38,QSK50) meet the Tier3 emission regulations for China non-road vehicles and Tier2 & Tier3 emission regulations of North America.

零零配件必须性好， 汽车发驱力使用及运营维护定期维护快速，料工费低。Good availbility of spare parts, smooth engine operation, convenient engine maintenance and low cost.

发动机规格Engine Specifications

电机功率规模 Power Range   224-310KW连接结构 Type   直列/六缸/四冲程/四气门  In-ine/6-Cylinder/4-Stroke/4-Valve缸径x冲程 BoreX Stroke  125X 147mm排量 Displacement   11L外观尺码 Dimension  长X宽X高(LXWX H) 1360 x 833X 1068 mm净高质量 Dry Weight   940kg

224-310KW康明斯发电机组用发起机的亮点：容积小， 解压缩变高， 格珊冷空气热处理加热，容易通电，移动手机汽车导航外接电源的首先选择。Compact size, high compression ratio, gile heated by air, easy for start-up, the first option of mobile vehicle power supply.

推荐机型Engine Models Recommended

热车机型号规格	较常用额定功率(kW)Prime Power	紧急额定功率kW)Standby Power
MTA11-G2	224	246
MTAA11-G3	282	310
